If you’ve spent any time around UNIX, you’ve no doubt learned to use and appreciate cron, the ubiquitous job scheduler that comes with almost every version of UNIX that exists. Cron is simple and easy to use, and most important, it just works. It sure beats having to remember to run your backups by hand, for example.
But cron does have its limits. Today’s enterprises are larger, more interdependent, and more interconnected than ever before, and cron just hasn’t kept up. These days, virtual servers can spring into existence on demand. There are accounting jobs that have to run after billing jobs have completed, but before the backups run. And, there are enterprises that connect Web servers, databases, and file servers. These enterprises may be in one server room, or they may span several data centers.
If you’re like most system administrators, you’ve worked around these limitations by leveraging other tools like scripting languages, configuration management, SSH/scp, and so on. The results usually work, but sometimes they are hard to manage. Eventually, you have to ask yourself if you’ve outgrown cron. Let’s take a quiz, just for fun.
Have you ever:
- Distributed a crontab file to multiple servers via scp, only to have to update those files later on?
- Forgotten which column you were editing and inadvertently scheduled a daily job to run every hour or vice versa?
- Had a job start before the previous instance of the same job had finished from the last run?
- Had to explain to your manager what jobs ran where and when, via cron?
- Received 15 e-mail messages in one morning telling you that everything ran properly the night before, only to miss the one message warning of an impending disk failure?
- Written a shell script or Makefile in order to manage which jobs run on which servers?
- Tried to schedule a cron job to run on the last day of the month...no matter which month?
- Allowed a junior system administrator access to your server’s crontabs and hoped he or she didn’t break something?
- Become proficient with cron, only to have the accounting department deploy a Windows server, with its own job scheduling mechanism?
- Put your crontabs under some kind of version control?
There’s no prize for answering all of these questions correctly, but you do get points for honesty. If you found yourself answering “yes” to a number of these questions, or at least relating to the situation they describe, you may be needing to rethink your job scheduling infrastructure. Your organization may be deep enough that people of varying skill levels may be looking at, or changing, job schedules. Or, your organization may be wide enough that you have to maintain many different types of services, such as database, Web, file, and authorization services. Your organization may be both wide and deep, in which case, you have almost certainly outgrown cron.
Today’s enterprise is different from what it was even ten years ago. Let’s take a look at some of the differences and discuss how an ideal enterprise job scheduling tool might deal with them.
Ease of Use
Nobody ever has said that cron was difficult to use. But let’s face it, we live in a point-and-click world now. Editing a raw ASCII file with a simple editor like vi or nano is an easy way to make a simple mistake that is often difficult to spot.
It’s very easy simply to press the wrong key on your keyboard. People who have worked with computers for some time and have become “touch typists” sometimes make mistakes without even knowing it. Another class of common error is simply losing track of which column in the crontab file is the day of week (DOW) and which is the hour column. Most crontab files include headers for each column by default. But these columns are often removed by crontab editing software or cron expert users who don’t feel the need to keep them. Finally, since most people edit crontab files with simple editors, no validation is performed on the actual script that they request is run. For example, is your script in /usr/bin/ or /usr/local/bin? Did you remember to check? The editor sure didn’t check for you.

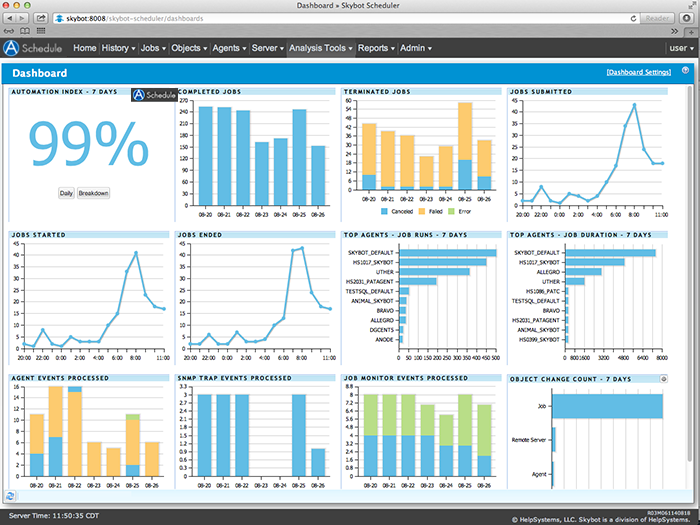

FIGURE 1. System administrators need to know which jobs ran and which jobs failed.
Automate Schedule by Fortra brings all of this information to you on a simple to use dashboard.
These are all simple, “only human” mistakes. If you use cron long enough, you learn to be careful and double-check any changes you make. Usually this lesson is learned the hard way though. And if you share system administration duties with others, you have to wonder whether the other system administrators are exercising the same diligence that you are.
Wouldn’t it be nice if the software you used to schedule jobs guided you a bit by presenting viable options and verifying input in order to prevent mistakes? Wouldn’t it be nice to be able to use your mouse to click on buttons to schedule a job? Instead of writing:
you simply could click on “at midnight, on the hour, Monday through Friday, run the backup job”. Then the software would verify that the job you scheduled actually exists and is able to run. Software never will be a replacement for human intelligence, but it should at least watch your back. By the way, did you notice the typo in that crontab entry?
Back in the good-old days, an IT enterprise might have consisted of an e-mail server and a file server or two, or maybe a handful of each. Usually, the system administrator would use one of those servers as a print server as well. Times have changed. Today’s IT enterprise often adds Web servers, authentication servers, database servers, (sometimes many different databases too) calendaring servers, business process management servers, CMS servers, revision control servers, and backup servers. In today’s enterprise, often there are servers to monitor the other servers!
In addition to running an enterprise with more servers that offer more and more different services, today’s enterprise may employ virtualization to help drive costs down. Virtualization creates situations where servers can come into existence and disappear based on demand requirements. Even a virtual server may require that certain jobs run on schedule. And since virtual machines don’t require an increase in physical chassis count, there is a propensity simply to spin up a new virtual machine any time a customer or department manager requests a new server. This results in a higher “virtual chassis” count. But, even a virtual server has some job scheduling requirements. Logs need to be rotated periodically, and depending on how you architect your enterprise, it might make sense to run backups from within the virtual machine or container.
So modern system administrators are faced with a twofold problem: they have to manage a wider variety of servers, and they have to manage a larger number of them.
From a technical point of view, it’s not too terribly difficult to replicate a crontab file to any given number of servers. It’s just a matter of a bit of scripting. But from a practical point of view, it’s just another manual step in what should be an automated process.
But, then it gets worse. Not every server needs the same crontab file. A Web server requires different jobs to run from what a database server would. And the accounting department may have jobs that need to run on its servers before jobs in payroll can run. However, all the servers in a given organization may share a core set of jobs that run across the entire enterprise. Managing this could prove painful.
In an ideal world, you’d like to be able to categorize your servers based on things like operating system, function, department, or development cycle such as development or production.
You’d like to be able to run a log analysis job on your Web servers that wouldn’t be meaningful to run on your database servers, even though the database servers feed their data to the Web servers. On the other hand, your database servers require periodic table maintenance that the mail servers don’t require.
If your sales department servers are customer-facing, you might decide to run their server backups outside business hours and run the accounting department’s backups during the day so that their processing jobs can run the following night.
Certainly, your Linux servers require different scheduled jobs to run than your BSD and Windows servers, but you’d still like to manage them all from a central location.
FIGURE 2. The ideal job scheduling tool should work the same on Windows and various flavors of UNIX.
Finally, you might like to back up your development servers more frequently than the corresponding production servers, because the development servers change more frequently.
Being able to categorize servers and schedule jobs on each server according to various criteria enables system administrators to manage a larger enterprise more efficiently. A good software tool would make managing these criteria and the distribution of job schedules as efficient and effortless as possible.
One area of job scheduling that cron just doesn’t do well is job dependency management. Some jobs simply cannot run until other jobs have completed.
A classic example is the database server that requires scheduled maintenance each night. It doesn’t do any good to run the backup job on a database server that is still running its daily maintenance. In fact, it can be devastating. At best, both jobs conflict with each other and slow each other down, causing them to run longer than needed. At worst, one job corrupts the other; the backup job backs up a database that is only partially repaired, or the repair job attempts to repair a database that is locked by the backup job.
As another example, it might make sense to process a company’s accounts payable (AP) before processing the accounts receivable (AR). In this way, you can be sure that your accounts never are negative since all of the outgoing money was spent before any of the incoming money came in. Of course, if you work at a bank, it might make sense to process withdrawals before deposits so as to increase the potential of collecting insufficient funds penalties.
And to put this all together, it might make sense to run the database backup job after the maintenance job, which should be run only once both the AP and AR jobs have completed.
Typically, this type of goal is accomplished by clever, and perhaps sloppy, job scheduling. You would schedule the AP processing right at 8 p.m. on the East coast, which is still 5 p.m. on the West coast. Then, knowing that the AP job typically only takes an hour to run, you would consider running the AR job at 10 p.m., giving yourself an hour of leeway in case the AP job takes longer than normal. Using the same logic, you schedule the database repair at 11 p.m., and finally, the backup at 1 a.m. the next morning. Remember, this is only about four hours of processing. But because of the limitations in job scheduling with cron, you’ve had to string it out over eight hours. Just in case there’s a problem with any of these jobs, a system administrator would need to be on call while they run, and there’s a big difference between being on call until 9 p.m. and being on call until 1 a.m.!
Simply put, cron doesn’t understand job dependency, so you have to resort to clever, and inefficient, job sequencing. The situation gets even worse when the various jobs that depend upon each other are run on different servers, perhaps in different data centers spread out across timezones.
It would be nice to be able to schedule a job to run as soon as all of its dependencies have been met. In this case, if a given job runs faster than normal, the other jobs get to run sooner. On the other hand, if a job runs longer than normal, it just runs longer, and the other jobs simply wait until it’s time for them to run.
FIGURE 3. The status of every job on every server is just a few clicks away.
This kind of dependency management could be accomplished using a make file, or another tool of that nature. But even that doesn’t solve the problem of being able to schedule jobs only after each and every server involved has run its backups and had its logs rotated. Dependency management is one thing; dependency management across multiple servers is quite another, and it’s really hard to accomplish with “clever scheduling” and make files.
A good job scheduling tool needs to understand job dependencies and understand that some of those dependencies may not be on the same server.
Easy to Visualize
So, over time, you’ve managed to build up a large array of scheduled jobs that automate much of the day-to-day operations of your enterprise. You’ve created a complex hierarchy of jobs and the servers that they run on. Everything is working perfectly, and you are a happy camper. Then it happens. Someone asks you how it all works.
Usually, this someone is another system administrator or maybe a new, or junior, system administrator. Or, in the worst case, it’s your manager, and he or she wants to understand fully how it all “fits together”. Printing out the crontab files for all of your servers obviously isn’t going to provide anyone with the big picture. You might be able to explain when the various jobs on a given server run, but that doesn’t even begin to explain why they run when they do. Perhaps you have some job dependency issues, like I discussed earlier, and you’ve had to schedule jobs with that in mind. Maybe you scheduled them to run when they run because it seemed like a good idea at the time. To put it differently, is job A scheduled after job B because it’s convenient, or because job B actually depends on job A completing first? Just looking at when a job is scheduled doesn’t capture that distinction.
Trying to make sense of the crontab files from multiple servers could be like drinking from a fire hydrant. Most parts of the files might even be identical, in which case, the devil is in the subtle differences between the various files.
You also might find yourself in the situation where the Web development team members want to understand how their stuff works, but they really don’t care how the database administrators’ stuff works. To put a perverse twist on things, the DBAs may ask to have their backup jobs scheduled earlier in the day, but only because they don’t understand that their backups can’t run until the accounting department completes its processing.
Nobody understands how it all works but you, and you don’t want to spend the rest of your life in meetings trying to explain it all.
An enterprise-grade scheduling tool should help you visualize when jobs run and what they depend upon before they can run. This visualization should be presented in a form that is intuitive and approachable by people with a wide range of technical sophistication. Moreover, this visualization should be based on how things actually work, not just on how they are documented to work. Maintaining the documentation on how things work shouldn’t be a separate task that needs to be (and almost never is) done when changes are made.
Finally, an enterprise-grade scheduling tool should be able to understand the entire enterprise, not just one or a few servers. The tool should be able to correlate how a job that runs on one server affects jobs that run on any number of other servers. And rather than giving everybody the same big picture, it would be nice if the scheduling tool could show stakeholders just what they need to see and nothing else.
Management by Exception
Most system administrators are used to checking their e-mail in the morning and seeing a number of messages triggered by the various jobs that ran the night before. Usually, perusing these messages becomes part of their morning workflow. At first, you actually read every line of every e-mail message. Over time, you get used to not finding anything untoward in these messages, so you simply begin to skim over them, looking for log entries that “stick out” at you. Eventually, you are tempted to become complacent and simply ignore the messages. This is the normal progression and is quite common—until it finally happens. One of the status reports indicates something went wrong. Usually this indication is camouflaged in the middle of the e-mail message, neatly tucked away between two perfectly normal log entries.
In the worst-case scenario, this error indication goes unnoticed for a few days. By then, it usually becomes a crisis situation. A hard drive that was merely failing a few days ago, suddenly dies today, for example. A log entry that might have indicated that your Web site had been compromised becomes a situation where your Web site is used to send SPAM, and then your mail server gets blacklisted, breaking e-mail for your entire enterprise.
Logs are important. But no one actually has time to read them, unless they’re important, and you can’t tell if they’re important unless you read them—all of them.
As odd as it sounds, it would be so much easier if system administrators received only the bad news. This is where “management by exception” comes into play. System administrators never need to react to having things run as expected. This is normal. System administrators like this. The only time system administrators should need to put down their coffee cups is when something is broken. This is the exception, and it should be indicated unambiguously by a clear error indication.
A job scheduling tool that is worthy of running the entire enterprise should be smart enough to tell the administrators only when something goes wrong instead of drowning them in a flood of good, but unimportant, news.
The cron scheduling system is pretty good at scheduling simple recurring jobs. It’s easy to schedule a job to run at midnight every night. Scheduling a job to run every 15 minutes, but only during the business week, is just a little bit more difficult, but it’s not something you’d spend more than ten minutes doing. Let’s face it, cron is pretty good at what it does and is pretty easy to use, but its scheduling capabilities are limited. For example, sometimes you actually want to run a job on the very last day of the month, instead of merely running it very early on the first day of the month.
Enterprise job scheduling isn’t just about making sure jobs run at a particular time. Sometimes you want a job to run based on an external trigger—for example, a network intrusion detection system might create a log file in response to suspicious activity being detected. Although many network intrusion detection systems can run scripts in response to various triggers, it might make sense to consolidate that type of job under the control of the scheduling system.
On the other hand, you might want a job to run when a particular host is no longer reachable via ICMP. Once again, your network management tools may be able to perform the same function, but an enterprise job scheduler may be able to do it in a more flexible fashion.
This is just a matter of being able to use the tool that does the job best, and it seems reasonable to expect a job scheduling tool to be able to manage various jobs no matter what triggered them to run.
Most programmers are familiar with using a version control system to track changes that are made to one or more files, but most system administrators aren’t in the habit of putting system configuration files under version control. For one thing, it’s yet another tool that has to be set up and maintained. Then there is the additional staff training. Finally, everyone has to remember to use it.
Revision control allows system administrators to examine and potentially back out changes that were made to a file, even if the changes were made long ago. Revision control doesn’t rely on your backups and even can bring back versions of a given file that have long since expired in your backup regimen. Unfortunately, cron isn’t version-control-friendly.
Everyone has been there. Someone made changes to a file two weeks ago, but nobody remembers what changes were made. Of course, backups were kept only for a week, so there’s no going to the backups to see what changed. If the file changes had been made under version control, you’d be able to see exactly what changes were made and even back them out if needed.
Revision control isn’t something normally applied to job scheduling, but it would sure be nice to have.
Cron is a great tool that’s been around for a long time. As a system administrator in today’s world, however, you are managing more servers, real and virtual, than ever before, and you need to automate any process you can. In order to make daily operations as efficient as possible, you need a tool that allows you to manage jobs on any number of different servers easily.
You also likely now find yourself working in a larger and more diverse group of administrators, managers, and developers than ever before, so you need a means of not only documenting how the enterprise operates, but also of delegating authority over how it operates. Modern enterprise job scheduling tools, such as Automate Schedule by Fortra, offer superior functionality, ease of use, and a more modern, graphical user interface.
